The Cruiser Ramp system will accommodate the standard 5'-6", 6'-6", and 8' bed lengths with 42" clearance between the wheel wells which includes step side model pickups as well as the Chevrolet Avalanche and like vehicles. The pickup loader allows for the tailgate of the pickup to be closed with the motorcycle removed on the 5'-6" and 6'-6" models. The tailgate may also be closed with the 8' bed model with the motorcycle loaded or removed from the bed.

    The motorcycle may be loaded into a 8' bed with or without the tailgate attached. The motorcycle pickup loader is easy to install and dismantle. The The Cruiser Ramp mechanism removes the motorcycle from the bed without having to pull the motorcycle out by hand. This is done without using multiple winches and complicated electronic switching.

    The loading ramps store within their own holders along the side of the pickup bed. The holders just drop into the stake bed holes within the pickup bed rail. They may be trimmed in order to lower the ramps as far as possible within the bed.

NOTE: The CruiserRamp system cannot be used with the full size 2008 Ford pickup with the new tailgate design with step and flip up stabilizing handle. If using the 8 foot bed with this tailgate, the tailgate must be removed in order for the system to function properly.

FORD F150 6'-6 MOTORCYCLE LOADED	FORD F150 6'-6" BED LOADING RAMP BRACKETS
DODGE 3500 WITH 8' BED	DODGE 1500 WITH 6'-6" BED
DODGE 1500 WITH 6'-6" BED LOADING WITH TAILGATE	DODGE 3500 WITH 8' BED LOADING WITHOUT TAILGATE
DODGE 3500 WITH 8'BED LOADING WITHOUT TAILGATE	DODGE 3500 WITH 8' BED MOTORCYCLE LOADED WITHOUT TAILGATE
DODGE 3500 WITH 8' BED 95 ANNIVERSARY HD FATBOY LOADED WITH TAILGATE CLOSED	DODGE 3500 WITH 8' BED MOTORCYCLE LOADED WITH TAILGATE ATTACHED

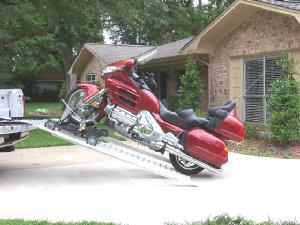

HONDA GOLDWING	HONDA GOLDWING
HONDA GOLDWING	HONDA GOLDWING
HONDA GOLDWING GROUND CLEARANCE @ MAXIMUM LOADING ANGLE	DODGE 3500 W/ BIKE LOADED TRAVEL TRAILER ATTACHED
DODGE 3500 W/ BIKE LOADED TRAVEL TRAILER ATTACHED
LOWERED PICKUP W/ RETRAX COVER CLOSED CRUISER RAMP SYSTEM ENCLOSED	PICKUP W/ RETRAX BED COVER OPENED CRUISER RAMP SYSTEM INSTALLED
MODIFIED LOADING RAMPS - PICKUP LOWERED 5"	PICKUP, LOWERED 5" MOTORCYCLE LOADING
FORD F150 WITH 6'-6 TAILGATE CLOSED WITH SYSTEM INSTALLED & MOTORCYCLE REMOVED	FORD F150 WITH 6'-6" BED MOTORCYCLE REMOVAL SPRINGS
2005 DODGE1500 6' - 6" BED	2005 DODGE 1500 6' - 6" BED
2005 DODGE 1500 6' -6	2005 DODGE 1500 6' - 6" BED
Dodge 3500 Dually 4 x 4 Honda Valkyrie Motorcycle	Dodge 3500 Dually 4 x 4 Honda Valkyrie Motorcycle
CRUISER RAMP VAN INSTALLATION	CRUISER RAMP VAN INSTALLATION
CRUISER RAMP VAN INSTALLATION	CRUISER RAMP VAN INSTALLATION

OVERALL WIDTH	Long or Short Bed Trucks = 41 1/8"
OVERALL IN-BED FRAME LENGTH	5'-6" Long Bed = 65" 6'-6" Long Bed = 73.75" 8' Long Bed = 95.5"
SYSTEM WEIGHT	335 Pounds
ELECTRIC WINCH	(Superwinch GP2300) 2300 Pound Capacity W/ 3/16" Heavy Duty Wire Rope Cable
PLATFORM CASTER WHEELS	6"x2" Black Rubber Wheels with wheel grabbers.
MOTORCYCLE WHEEL CHOCK	Locking Wheel Chock. (Ride On-Get Off-Walk Away)
OUTSIDE RAMPS	Length = 95.25" Aluminum Ramps
REAR TIRE RAMP	Length = 94" Aluminum Ramp with a  1500 Pound Weight Capacity
FRONT AXLE TIE-DOWN STRAPS	Ratchet Tie-Down Straps
ACTIVATION SWITCH	Handheld Remote Activation Switch W/ 15 Foot Cable. Allows you to be back with, and watch the motorcycle loading and unloading.
SAFETY CHAINS	Right and Left Front Safety Chains
FRAME FINISH	Black Powder Coat Finish
MOTORCYCLE WEIGHT CAPACITY	1000 Pounds
SHIPPING	Shipped via Truck  (Shipped Fully Assembled, Ready to Install) System is shipped on a 4' x 8' pallet. Requires the use of a forklift for truck removal.
PRODUCT LIABILITY INSURANCE	Yes
PATENTED	Yes
SHIPPING	Within 24 hours under most conditions.
VIDEO   The video may take a few moments to download. The videos are of a HD motorcycle loading into and unloading from a Ford F150 6'-6" length bed pickup.   You may turn the volumn down to remove the electric winch noise if desired.	MOTORCYCLE LOADING MOTORCYCLE UNLOADING
